Wtb Caster Shims

Discussion in 'Early CJ-5 and CJ-6 Classifieds' started by Snoops, Sep 22, 2022.

  1. Sep 22, 2022
    Snoops

    Snoops Making progress, slow but at least it's forward! 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Idaho
    Joined:
    Sep 4, 2019
    Messages:
    437
    Did I read somewhere that someone on site makes and sells these?

  2. Sep 22, 2022
    Fireball

    Fireball Well-Known Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Pullman, WA
    Joined:
    Feb 9, 2018
    Messages:
    5,776
    Stakebed likes this.
  3. Sep 22, 2022
    FinoCJ

    FinoCJ 1970 CJ5 Staff Member

    Bozeman, MT
    Joined:
    Jul 18, 2013
    Messages:
    5,731
  4. Sep 22, 2022
    Snoops

    Snoops Making progress, slow but at least it's forward! 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Idaho
    Joined:
    Sep 4, 2019
    Messages:
    437
    Thanks for the info!

  5. Oct 7, 2022
    melvinm

    melvinm Member

    Arvada Co. 80003
    Joined:
    Aug 11, 2012
    Messages:
    196
    I got mine from Tom Wood's Drive Shaft . They are 2 ", had to grind down like
    Fireball Said. Has all different thicknesses.

    Ol Fogie, Snoops and Fireball like this.
  6. Jul 20, 2023
    Jw60

    Jw60 Space ranger 2024 Sponsor 2023 Sponsor 2022 Sponsor

    The most magical...
    Joined:
    Apr 8, 2008
    Messages:
    4,904
    Did you find what you need?
    Mcruff was making these but he is enjoying retirement.

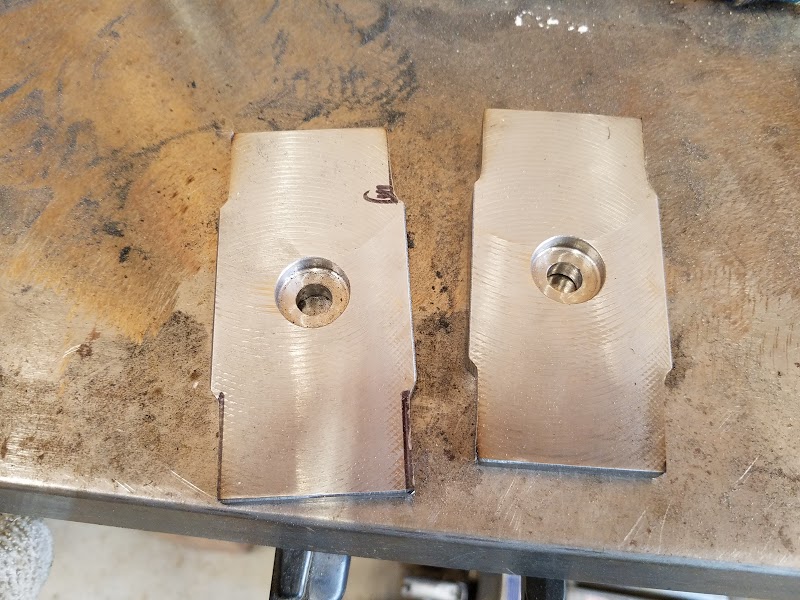

    the WFO shims have an arch on the bottom to match the springs, and are plated at a cost that is not worth competing with.

  7. Jul 20, 2023
    Snoops

    Snoops Making progress, slow but at least it's forward! 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Idaho
    Joined:
    Sep 4, 2019
    Messages:
    437
    Hey JW, I did decide on the WFO's, thanks!

    Jw60 likes this.
  8. Jul 20, 2023
    Tralehead

    Tralehead Member

    Silverado, CA
    Joined:
    Nov 7, 2022
    Messages:
    206
    Curious; are you using for caster or pinion change?

  9. Jul 20, 2023
    FinoCJ

    FinoCJ 1970 CJ5 Staff Member

    Bozeman, MT
    Joined:
    Jul 18, 2013
    Messages:
    5,731
    Most of us are doing it on the front end to get the caster correct to help with steering. It does rotate the pinon down, which is a negative, but most of us find the trade off worth it on a front axle where steering is important all the time, especially in 2wd at higher speeds, and the front axle is only engaged in 4wd a limited amount, and often at slow speeds.

  10. Jul 21, 2023
    Tralehead

    Tralehead Member

    Silverado, CA
    Joined:
    Nov 7, 2022
    Messages:
    206
    Yeah, mine are for caster as well. Looking at possibly using the king pins when switching suspension...
    Wondering if anyone has tried those?

  11. Jul 22, 2023
    Snoops

    Snoops Making progress, slow but at least it's forward! 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Idaho
    Joined:
    Sep 4, 2019
    Messages:
    437
    This :)

  12. Jul 22, 2023
    1967 CJ5A

    1967 CJ5A Mike 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Raleigh, NC
    Joined:
    May 12, 2012
    Messages:
    729
    The cheapest steel shims I found were Rubicon Express brand. You will have to cut them down to the 1.75" width.

    Part numbers RE1468 (6 deg) or RE 1467 (4 deg).

    I just bought a 4 degree set of two for $22 total on Amazon.

    Tom_Hartz likes this.
